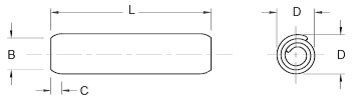

Coiled Spring Pin(Medium Duty) ANSI/ASME B18.8.2 |
| |||||||
Nominal Size |
Pin Diameter(D) |
Chamfer |
Recommended Hole Size |
Double Shear Load, Min, lb |
||||
|
Diameter(B) |
Length(C) |
Material |
||||||
Carbon
Steel (1070-1090) |
||||||||
|
Max |
Min |
Max |
Ref |
Max |
Min |
|||
|
1/16 |
.072 |
.067 |
.059 |
.028 |
.065 |
.061 |
330 |
|
|
5/64 |
.088 |
.083 |
.075 |
.032 |
.081 |
.077 |
550 |
|
|
3/32 |
.105 |
.099 |
.091 |
.038 |
.097 |
.093 |
775 |
|
|
1/8 |
.138 |
.131 |
.121 |
.044 |
.129 |
.124 |
1400 |
|
|
5/32 |
.171 |
.163 |
.152 |
.048 |
.160 |
.155 |
2200 |
|
|
3/16 |
.205 |
.196 |
.182 |
.055 |
.192 |
.185 |
3150 |
|
|
7/32 |
.238 |
.228 |
.214 |
.065 |
.224 |
.217 |
4200 |
|
|
1/4 |
.271 |
.260 |
.243 |
.065 |
.256 |
.247 |
5500 |
|
|
5/16 |
.337 |
.324 |
.304 |
.080 |
.319 |
.308 |
8700 |
|
|
Spring Pin ANSI/ASME B18.8.2 |
| ||||||||||
Nominal Size |
Pin Diameter(G) |
Chamfer Dia.(H) |
Chamfer Length(C) |
Stock Thickness |
Recommended Hole Size |
Double Shear
Load, Min, lb |
|||||
Material |
|||||||||||
Carbon Steel & 420 Stainless |
Type 302 Stainless |
||||||||||
|
Max |
Min |
Max |
Max |
Min |
Basic |
Max |
Min |
||||
|
1/16 |
.069 |
.066 |
.059 |
.028 |
.007 |
.012 |
.065 |
.062 |
430 |
250 |
|
|
5/64 |
.086 |
.083 |
.075 |
.032 |
.008 |
.018 |
.081 |
.078 |
800 |
460 |
|
|
3/32 |
.103 |
.099 |
.091 |
.038 |
.008 |
.022 |
.097 |
.094 |
1150 |
670 |
|
|
1/8 |
.135 |
.131 |
.122 |
.044 |
.008 |
.028 |
.129 |
.125 |
1875 |
1090 |
|
|
9/64 |
.149 |
.145 |
.137 |
.044 |
.008 |
.028 |
.144 |
.140 |
2175 |
1260 |
|
|
5/32 |
.167 |
.162 |
.151 |
.048 |
.010 |
.032 |
.160 |
.156 |
2750 |
1600 |
|
|
3/16 |
.199 |
.194 |
.182 |
.055 |
.011 |
.040 |
.192 |
.187 |
4150 |
2425 |
|
|
7/32 |
.232 |
.226 |
.214 |
.065 |
.011 |
.048 |
.224 |
.219 |
5850 |
3400 |
|
|
1/4 |
.264 |
.258 |
.245 |
.065 |
.012 |
.048 |
.256 |
.250 |
7050 |
4100 |
|
|
5/16 |
.328 |
.321 |
.306 |
.080 |
.014 |
.062 |
.318 |
.312 |
10800 |
6300 |
|
|
3/8 |
.392 |
.385 |
.368 |
.095 |
.016 |
.077 |
.382 |
.375 |
16300 |
9500 |
|
|
7/16 |
.456 |
.448 |
.430 |
.095 |
.017 |
.077 |
.445 |
.437 |
19800 |
11500 |
|
|
1/2 |
.521 |
.513 |
.485 |
.110 |
.025 |
.094 |
.510 |
.500 |
27100 |
15800 |
|
