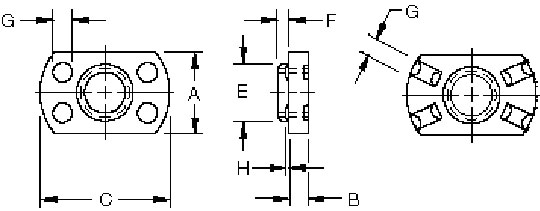

Projection Weld Nuts (Two Projections)

Nut

Pilot

Projection

Sheet Hole

Size

Width(A)

Thickness(B)

Length(C)

Diameter(E)

Height(F)

Width(G)

Height(H)

Length

Max

Min

Max

Min

Max

Min

Max

Min

Max

Min

Max

Min

Max

Min

Max

Min

6-32

.390

.370

.097

.091

.640

.610

.198

.178

.042

.026

.099

.089

.014

.010

.109

.079

.203

8-32

.390

.370

.097

.091

.640

.610

.213

.193

.042

.026

.099

.089

.014

.010

.109

.079

.219

10-24

.390

.370

.097

.091

.640

.610

.244

.224

.042

.026

.099

.089

.014

.010

.109

.079

.250

10-32

.390

.370

.097

.091

.640

.610

.244

.224

.042

.026

.099

.089

.014

.010

.109

.079

.250

1/4-20

.520

.495

.128

.122

.827

.797

.307

.287

.062

.046

.130

.120

.025

.021

.140

.110

.312

1/4-28

.520

.495

.128

.122

.827

.797

.307

.287

.062

.046

.130

.120

.025

.021

.140

.110

.312

5/16-18

.655

.620

.145

.138

.999

.969

.369

.349

.092

.076

.130

.120

.029

.025

.156

.126

.375

5/16-24

.655

.620

.145

.138

.999

.969

.369

.349

.092

.076

.130

.120

.029

.025

.156

.126

.375

3/8-16

.655

.620

.145

.138

.999

.969

.448

.428

.102

.086

.130

.120

.029

.025

.156

.126

.453

3/8-24

.655

.620

.145

.138

.999

.969

.448

.428

.102

.086

.130

.120

.029

.025

.156

.126

.453

1/2-13

.797

.734

.190

.184

1.140

1.110

.599

.569

.102

.086

.130

.120

.030

.026

.171

.141

.609

Projection Weld Nuts (Four Projections)

Nut

Pilot

Projection

Sheet Hole

Size

Width(A)

Thickness(B)

Length(C)

Diameter(E)

Height(F)

Width(G)

Height(H)



Max

Min

Max

Min

Max

Min

Max

Min

Max

Min

Max

Min

Max

Min

6-32

.453

.433

.097

.091

.640

.610

.198

.178

.042

.026

.095

.085

.017

.013

.203

8-32

.453

.433

.097

.091

.640

.610

.213

.193

.042

.026

.095

.085

.017

.013

.219

10-24

.453

.433

.097

.091

.640

.610

.244

.224

.042

.026

.095

.085

.017

.013

.250

10-32

.453

.433

.097

.091

.640

.610

.244

.224

.042

.026

.095

.085

.017

.013

.250

¼-20

.520

.495

.097

.091

.827

.797

.307

.272

.042

.026

.130

.120

.022

.018

.312

5/16-18

.655

.620

.128

.122

.999

.969

.369

.349

.092

.076

.155

.145

.035

.025

.375

5/16-24

.655

.620

.128

.122

.999

.969

.369

.349

.092

.076

.155

.145

.035

.025

.375

3/8-16

.655

.620

.128

.122

.999

.969

.448

.428

.102

.086

.155

.145

.035

.025

.453

3/8-24

.655

.620

.128

.122

.999

.969

.448

.428

.102

.086

.155

.145

.035

.025

.453

½-13

.797

.734

.190

.184

1.266

1.234

.599

.569

.102

.086

.176

.166

.040

.030

.609

½-20

.797

.734

.190

.184

1.266

1.234

.599

.569

.102

.086

.176

.166

.040

.030

.609
