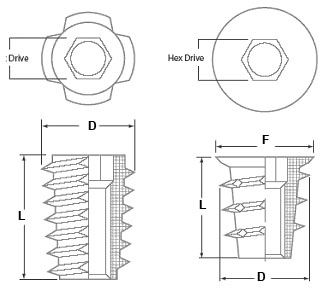

Hex Drive Thread Inserts             For Wood

Design

Internal Thread

Length

(mm)(L)

Hole Size

(mm)(D)

Hex Dimensions

Flush

8-32

10

6

M4

Flush

10-24

13

7

M5

Flush

10-32

13

7

M5

Flush

-20

13

9

M6

Flush

-20

20

9

M6

Flush

5/16-18

20

11

M8

Flush

5/16-18

25

11

M8

Flanged

8-32

10

6

M4

Flanged

10-24

11

7

M5

Flanged

10-24

20

7

M5

Flanged

10-32

11

7

M5

Flanged

10-32

13

7

M5

Flanged

10-32

20

7

M5

Flanged

-20

13

9

M6

Flanged

-20

20

9

M6

Flanged

-20

25

9

M6

Flanged

5/16-18

13

11

M8

Flanged

5/16-18

25

11

M8

Flanged

3/8-16

13

12

M10

Flanged

3/8-16

25

12

M10
