Disconnects(female) Insulated

AWG

NEMA Tab

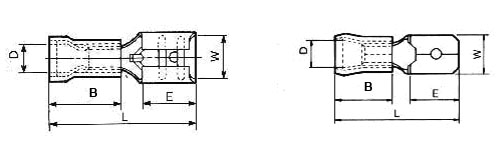

Dimensions

W

L

E

D

C

22-16

.020 x .187

.197

.788

.236

.106

.433

22-16

.032 x .187

.197

.788

.236

.106

.433

22-16

.032 x .250

.260

.867

.268

.106

.433

16-14

.020 x .187

.197

.788

.236

.126

.433

16-14

.032 x .187

.197

.788

.236

.126

.433

16-14

.032 x .250

.260

.867

.268

.106

.433

12-10

.032 x .250

.260

.985

.268

.150

.552

Disconnects(male) Insulated

AWG

NEMA Tab

Dimensions

W

L

E

D

C

Vinyl

Nylon

Flared Entry

Funneled

22-16

.032 x .250

.248

.808

.808

.808

.315

.138

.374

16-14

.032 x .187

.187

.830

.840

.840

.250

.160

.500

16-14

.032 x .250

.248

.808

.808

.808

.315

.169

.374

12-10

.032 x .250

.248

.966

.966

.966

.315

.244

.532

Disconnects(female) Insulated w/Wire Stop

AWG

NEMA Tab

Dimensions

W

L

E

D

C

Vinyl

Nylon

Flared Entry

Funneled

22-16

.020 x .110

.126

.705

.705

.705

.138

.138

.374

22-16

.032 x .110

.126

.705

.705

.705

.138

.138

.374

22-16

.020 x .187

.197

.737

.737

.737

.236

.138

.374

22-16

.032 x .187

.197

.737

.737

.737

.236

.138

.374

22-16

.032 x .250

.268

.807

.807

.807

.307

.138

.374

16-14

.020 x .187

.197

.737

.737

.737

.236

.169

.374

16-14

.032 x .187

.197

.737

.737

.737

.236

.169

.374

16-14

.032 x .250

.260

.807

.807

.807

.307

.169

.374

12-10

.032 x .250

.260

.965

.965

.965

.307

.244

.532
