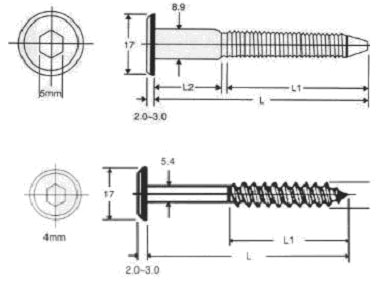

Joint Connector Screw                                        Wood Screw

Screw Dia.

Head Dia (mm)

Head Height

(mm)

Length Under Head

Length of Thread

Pilot Hole Size

Metric Hex Drive

.275

17

2

1.181

.787

3/16-7-32

4

.275

17

2

1.575

1.181

3/16-7/32

4

.275

17

2

1.969

1.575

3/16-7/32

4

.275

17

2

2.362

1.969

3/16-7/32

4

.275

17

2

2.756

2.362

3/16-7/32

4

.275

13

2

1.181

.787

3/16-7/32

4

.275

13

2

1.575

1.181

3/16-7/32

4

.275

13

2

1.969

1.575

3/16-7/32

4

.275

13

2

2.362

1.969

3/16-7/32

4

.275

13

2

2.756

2.362

3/16-7/32

4
