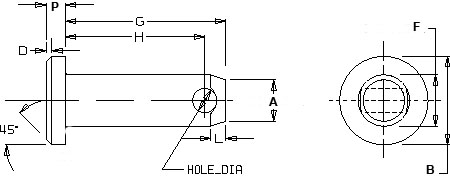

Clevis Pins SAE J493 |
| |||||||||||||
Nominal Size |
Body Diameter(F) |
Head Dia(B) |
Head Height(P) |
Head Chamfer |
Hole Dia. |
Chamfer Dia.(D) |
Length(G) |
Under Head To Center
of Hole(H) |
Center of Hole to End(L) |
Under Head of Nom Hole |
||||
Max |
Min |
Ref |
Ref |
|||||||||||
|
Max |
Min |
Max |
Min |
|||||||||||
|
3/16 |
.186 |
.181 |
.312 |
.062 |
.016 |
.088 |
.073 |
.152 |
.147 |
.578 |
.484 |
.094 |
.445 |
|
|
1/4 |
.248 |
.243 |
.375 |
.094 |
.031 |
.088 |
.073 |
.214 |
.209 |
.766 |
.672 |
.094 |
.633 |
|
|
5/16 |
.311 |
.306 |
.438 |
.094 |
.031 |
.119 |
.104 |
.265 |
.259 |
.938 |
.812 |
.125 |
.757 |
|
|
3/8 |
.373 |
.368 |
.500 |
.125 |
.031 |
.119 |
.104 |
.327 |
.321 |
1.062 |
.938 |
.125 |
.883 |
|
|
7/16 |
.436 |
.431 |
.562 |
.156 |
.047 |
.119 |
.104 |
.390 |
.384 |
1.188 |
1.062 |
.125 |
1.008 |
|
|
1/2 |
.496 |
.491 |
.625 |
.156 |
.047 |
.151 |
.136 |
.439 |
.431 |
1.359 |
1.203 |
.156 |
1.133 |
|
|
5/8 |
.621 |
.616 |
.812 |
.203 |
.062 |
.151 |
.136 |
.564 |
.556 |
1.609 |
1.453 |
.156 |
1.383 |
|
|
3/4 |
.746 |
.741 |
.938 |
.250 |
.078 |
.182 |
.167 |
.678 |
.668 |
1.906 |
1.719 |
.188 |
1.633 |
|
|
7/8 |
.871 |
.866 |
1.031 |
.312 |
.094 |
.182 |
.167 |
.803 |
.793 |
2.156 |
1.969 |
.188 |
1.883 |
|
|
1 |
.996 |
.991 |
1.188 |
.344 |
.109 |
.182 |
.167 |
.928 |
.918 |
2.406 |
2.219 |
.188 |
2.133 |
|
